Steel quantity calculations is a complex task and can be automated to a great extent by using formulas and innovative solutions.
While I was a student of engineering, in the final year we had this subject called as QSCT which included Estimation of quantities. A part of the subject included the calculation of steel quantities. Generally, reinforcement steel is calculated in cutting length and then later this length is converted into weight by multiplying with the factor.
Generally, Bent-ups are of 3 types viz. 30, 45 and 60 degrees. The corresponding additions to the bent angles are 0.26d, 0.42 and 0.57d respectively, remembering these values is an absolute pain and it is also a bit tricky to code for these. I prefer learning how stuff come into existence like the complete derivation of the factors. So now in order to remember and recall these factors during exams, I came up with a simple formula
 |
| The formula for Calculation of Bent-up Bar Lenght |

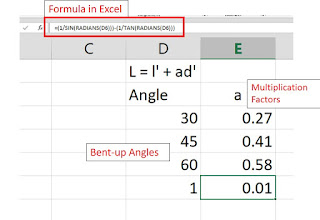

Then just by changing the angle, you can get the length that we're supposed to add in the cutting length of the steel. I just remembered the formula and later using the calculator I used to compute the factors. Also while coding a spreadsheet stuffs become extremely simple and easy to handle. This is how I implement the above formula in Mircosoft Excel or any other spreadsheet software.
 |
| Implementation of Formula in Excel |
Now once you've learned this you can simply automate much of your tasks in the computation and make it simple and time-saving.
Just for fun purposes I made computed the value of a for angles ranging from 0 to 360 degrees. As it is It was just pulled and drag stuff so it didn't take much of the time.
 |
| Values of a from 10 to 360 degrees |
Thanks for Reading.
- Sayyed Shadaab
Engineer for the Digital Civilization
